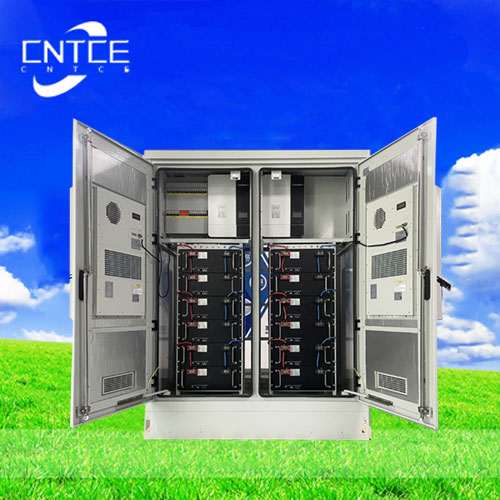

CNTCE energy storage technologies manufactures indoor and outdoor industrial enclosures to meet the needs of the Battery + Energy Storage industries. With the increasing importance for renewable energy sources, you need storage for the energy and power supply.
1. All-in-one energy storage system solution supports simultaneous access to load, battery, power grid, and photovoltaic
2. Home solar storage system manufactures indoor and outdoor industrial enclosures to meet the needs of the Battery + Energy Storage industries.
3. Battery energy storage systems have perfect protection function to protect inverter and battery
4.Solar power home systems, easy to use
5. Solar Power Battery Storage can be expanded to facilitate flexible , Multiple working modes can be flexibly set.
6. Battery energy storage systems Seamlessly switch from off-grid state to provide uninterrupted supply of load
7. House solar systems IP55 stainless enclosure with corrosion resistant painting.
8. Built-in battery management system, HVAC, and automatic fire suppression system
Maximum power
11kW/33kW/55kW/110kW/220kW
rated power
10kW/30kW/50KW/100kW/200kW
Rated voltage
400V
rated current
25A/43A/72A/145A/290A
system capacity
30kWh/60kWh/100kWh/200kWh/400kWh
Battery Type
LiFePO4(LFP)
grid mode
Grid/Off Grid
PV Maximum input voltage
500Vdc/950Vdc/950Vdc/950Vdc/950Vdc
PV Maximum input power
11kW/60kW/120kW/180kW/250kw
PV MPPT working voltage range
120-500Vdc/250-850Vdc
PV MPPT full load voltage range
120-450Vdc/450-850Vdc
Battery rated capacity
20.48kWh/57.344kWh/100.352kWh/200.704kWh/401.408kWh
Battery rated voltage
51.2V/204.8V/358.4V/716.8V/716.8V
Battery working voltage
40V-58.4V/172.8-230.4V/302.4-403.2V/604.8-806.4V/604.8-806.4V
Rated charge and discharge rate
0.5C
Battery Maximum charge and discharge current
50A/55A/90A/150A/150A
EMS user interface
LCD/LED
EMS Communication EMS Interface
Ethernet,ModbusTCP,CAN,RS485
EMS RF antenna
Wireless Antenna Interface
EMS GPS interface
GPS Antenna Port
EMS Power input
DC24V
System life
6000次@25℃,0.5CP,95%DOD,SOC≥70%
Altitude
2000米
storage temperature
-40℃ ~ 70℃
Operating temperature
-20℃ ~ 55℃
environment humidity
5% - 95%RH,
Fire Fighting System
Hot melt adhesive/heptafluoropropane/non-storage perfluorohexanone fire extinguishing system
cooling method
Industrial air conditioner/ intelligent air cooling
Air Conditioning Cooling Capacity
AC1500W/AC2000W/AC3000W/AC4000W/AC8000W
degree of protection
IP55/IP66
